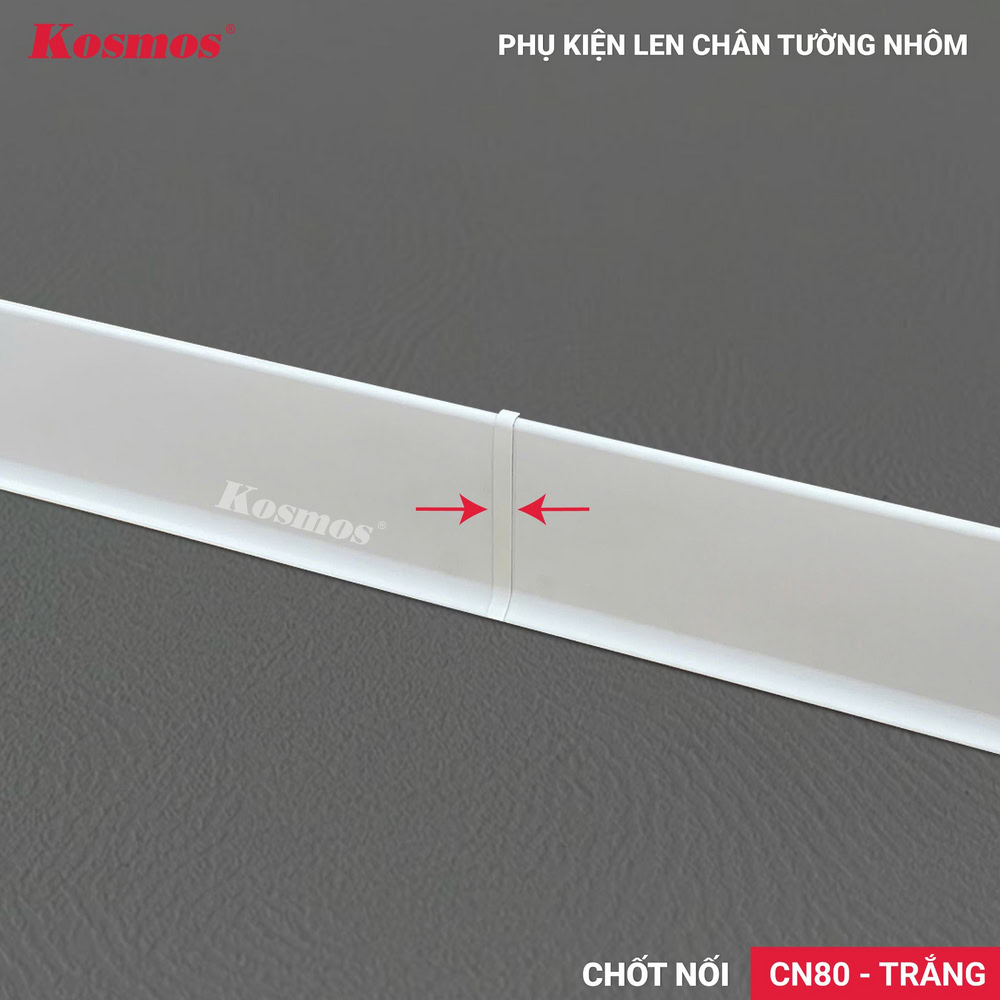

What is the purpose of the NC80-T white aluminum baseboard connector?

The NC80-T connector is an accessory used to connect two aluminum skirting boards. CT80-T White when the wall length exceeds 3 meters – the limit for each individual trim strip. The accessory addresses the gap at the joint between the two ends of the strip, where the aluminum cross-section is easily exposed, dust accumulates, and the seamless white line is broken.

What problems does the NC80-T connector solve when installing white aluminum baseboards?

The NC80-T connector simultaneously addresses all five issues: sealing the gap, covering the cross-section, blocking dust and water, and mechanically connecting two bars at the joint.

When two CT80-T wool strips are placed side-by-side on the same wall without any finishing accessories, the following problems will occur:

1. Visual field defects: Even when joined closely, the two cut ends still create a dark line of 0,5-2mm between the white strip → easily noticeable to the eye, breaking the seamless effect of the CT80-T aluminum baseboard.
2. Aluminum cross-section revealed: The cross-section reveals a silvery-gray metal surface, creating a noticeable "unusual feature."
3. Dust accumulates in the crevices: The small gap between the two ends of the rod becomes a place where fine dust, fabric fibers, and hair get trapped – making it difficult to clean thoroughly.
4. Floor cleaner penetrates: When mopping, water splashes into the gap between the two mops → flows onto the back of the mop head → making the wall damp.
5. Alternating over time: The two strips have no physical connection; thermal expansion causes the gap to widen or the two sides of the wool to become misaligned.

The actual situation requires the NC80-T connector:

1. Living room walls 5-7m: 2 woolen rods → 1 NC80-T connector.
2. Apartment hallway width: 8-12m 3-4 wool strips → 2-3 NC80-T connector pins.
3. Vertical walls along the main hall/waiting area, 15-25m: 5-8 wool strips → 4-7 NC80-T connector pins.

What are the specifications of the NC80-T connector fitting?

Clearly distinguish the intended use to avoid incorrect installation:

• Two recessed 90° angled bars → use GTC80-T.
• Two convex 90° angled bars → use GNC80-T.
• The laser beam stops completely (not connected) → use DC80A-T or DC80B-T.
• There is only one strip of trim (for walls ≤ 3m) → not needed. NC80-T.

NC80-T is only used when two bars are STRAIGHT-LINE CONNECTED on the same continuous wall.

How to properly install the NC80-T connector?

The installation process for the NC80-T connector includes 3 steps:

Step 1: Attach the locking clips at the connection point, ensuring there are two locking clips for each end of the wool strip.

Step 2: Insert the connecting pin between the two base locks at the connection point – the pin has a "blade" that engages with the back of the base lock.

Step 3: Insert the CT80-T wool strip into the base lock, ensuring the end of the wool strip aligns with the NC80-T pin.

Each connection only takes 2-3 minutes, and no glue is needed.

How to clean and maintain the white NC80-T connector?

The white NC80-T connector needs to be cleaned and maintained as follows:

1. Wipe the felt strip with a damp cloth while cleaning it – paying attention to the gap between the pins and the felt, where fine dust easily accumulates.
2. A pH 6-8 solution such as diluted dish soap or glass cleaner.
3. Avoid cleaning with sandpaper or abrasive scouring pads.
4. Wipe away dark stains immediately (coffee, mud, ink).
5. Check the grip every 3-6 months.

Detailed video of white aluminum skirting board and connecting accessories:

The white NC80-T connector is an accessory that keeps the CT80-T aluminum baseboard running continuously along walls longer than 3 meters. This product is especially important for long spaces such as hallways, lobbies, spas, and hospitals – where dozens of meters of white wall require an uninterrupted baseboard.
