ASA Galawood plastic panel is an outdoor imitation wood plastic panel,
PVC plastic material, ASA coating helps keep color in harsh sunlight.
Galawood ASA plastic cladding panels – A lightweight, colorfast, and weather-resistant outdoor cladding solution.
Galawood ASA-coated wood-look PVC panels are constructed from a PVC core combined with a high-quality ASA coating, increasing durability and adaptability to harsh weather conditions.
The product has 6 main advantages, including:
Light-weightWeighing only 1,89 – 4,5 kg per 3-meter length, it allows for faster construction and reduces the load on the building structure.
UV protection, colorfast.The ASA coating is directly bonded to the resin core using extrusion technology, minimizing fading and scratching.
3D wood grain surfaceEmbossing creates a natural effect, enhancing the aesthetics of outdoor spaces.
Termite-resistant, waterproof.Suitable for humid environments and conditions with alternating rain and sunshine.
Fire resistance: Meets Class B standards, contributing to improved safety for the structure.
High stabilityLow expansion rate helps the cladding maintain its shape and color for 5–10 years.
Thanks to these properties, this material is used for outdoor applications such as facade cladding, balcony ceilings, signage, and gate doors.
Flexible panels, can be bent and shaped to create impressive effects
Water absorption rate 0%
Technical standards for ASA wood-plastic panels
Product Type
Dimensions (mm)
Weight (kg/bar)
Surface
Flat panel
112 x 16 x 3000mm
1,89kg/bar
Matte, embossed 3D pattern
Blue wave
219 x 25 x 3000mm
4,5kg/bar
4 waves
190 x 20 x 3000mm
3,45kg/bar
5 waves
Instructions for installing ASA Galawood wood-plastic panels
Construction ASA-coated wood-imitation plastic wall panels It is necessary to strictly follow technical instructions and safety warnings from Viet Nam Kosmos Joint Stock Company To ensure the durability, aesthetics, and longevity of the product in outdoor conditions.
3 important points to note when installing ASA-coated plastic cladding panels:
The panels are secured to the frame using stainless steel brackets and screws. Private Fluted panel G-4S219X25 It has wide and thick tongue edges, allowing shoot screws directly without using glue.
The construction framework must have Minimum size 25×25 mm, with Bone thickness of 1,2 mm or more To ensure long-term load-bearing capacity and stability.
When installing under a glass roof, polycarbonate roof, or metal roof., need Install an additional layer of insulation and leave a gap of 300–500 mm. The space between the roof and the cladding panels helps to limit heat buildup, ensuring product durability.
Adhering to all three points above will help ASA-coated wood-look plastic cladding maximize its colorfastness, weather resistance, and ensure long-term effectiveness for your project.
Application image of ASA outdoor wood plastic panels

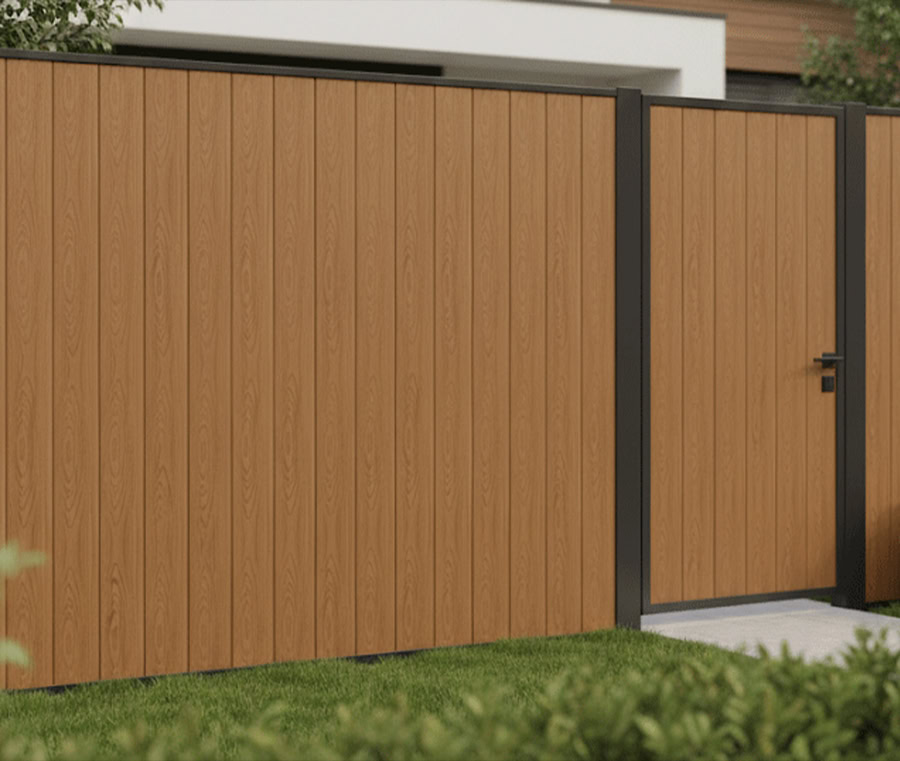

Gate cover

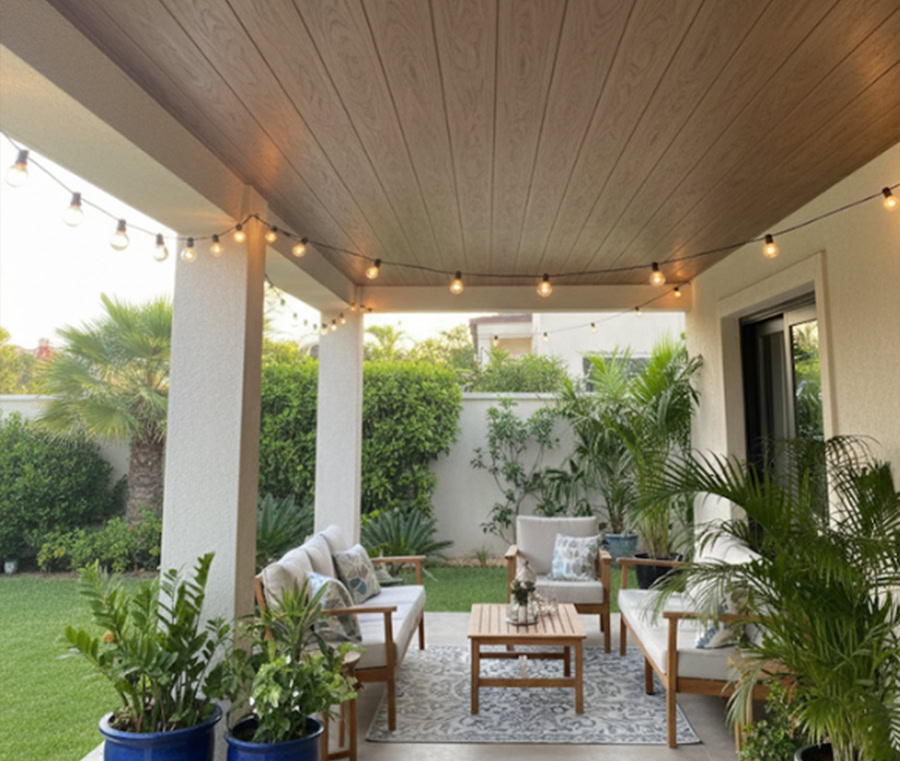

Ceiling tiles

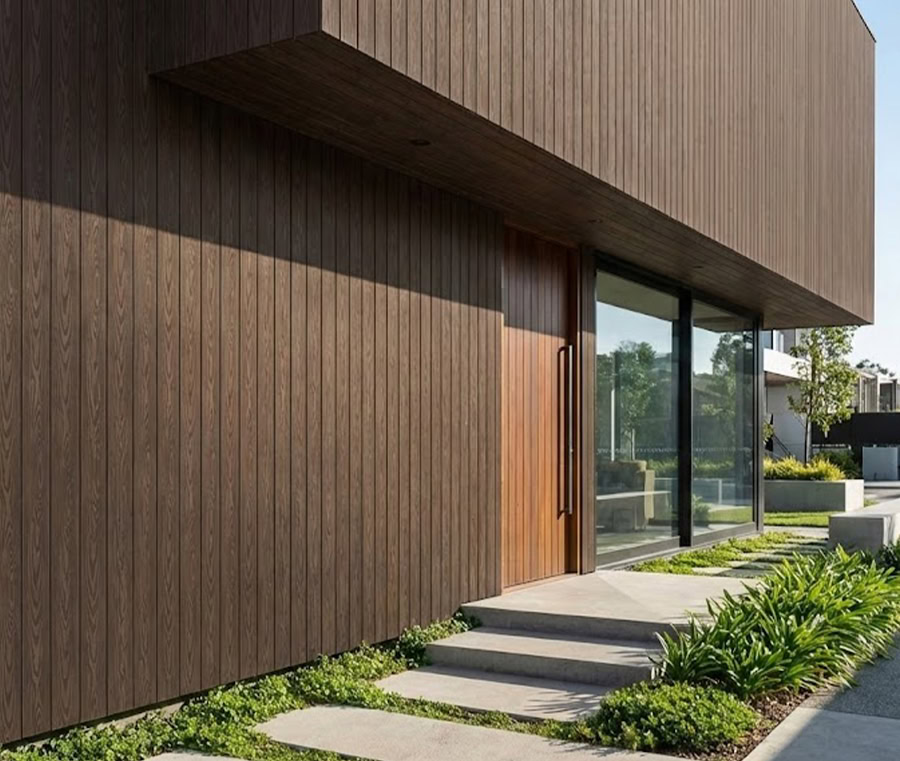

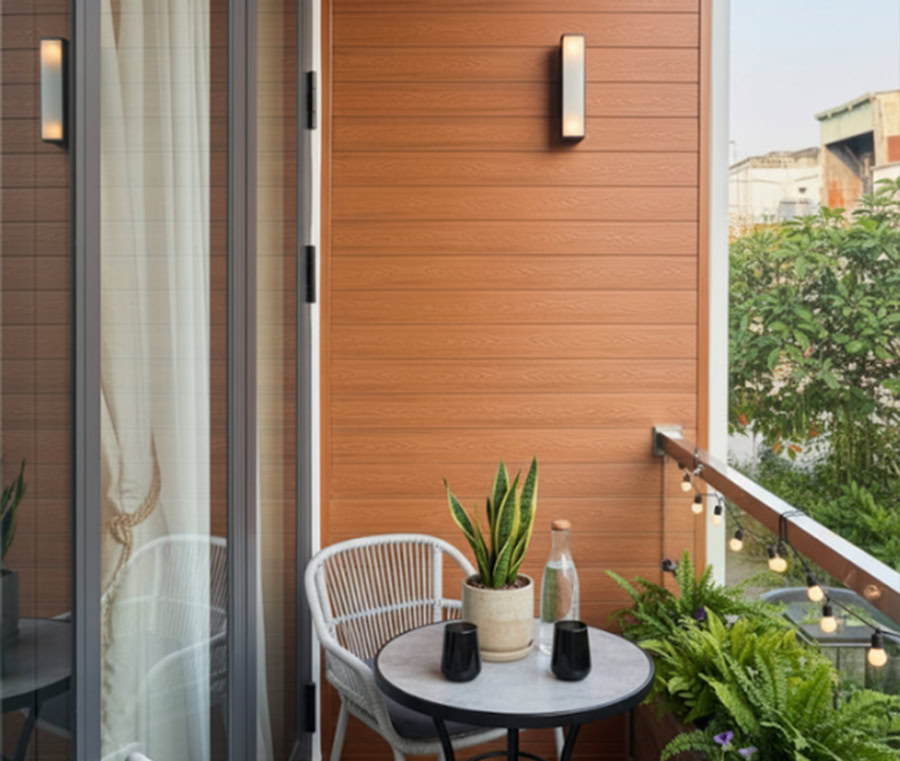

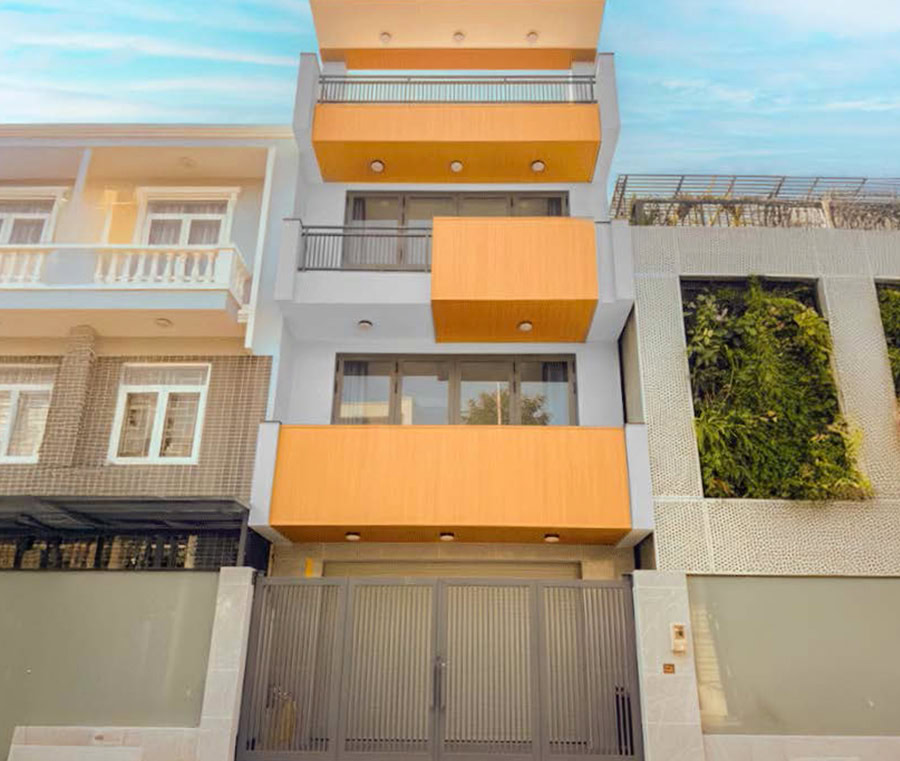

Walling

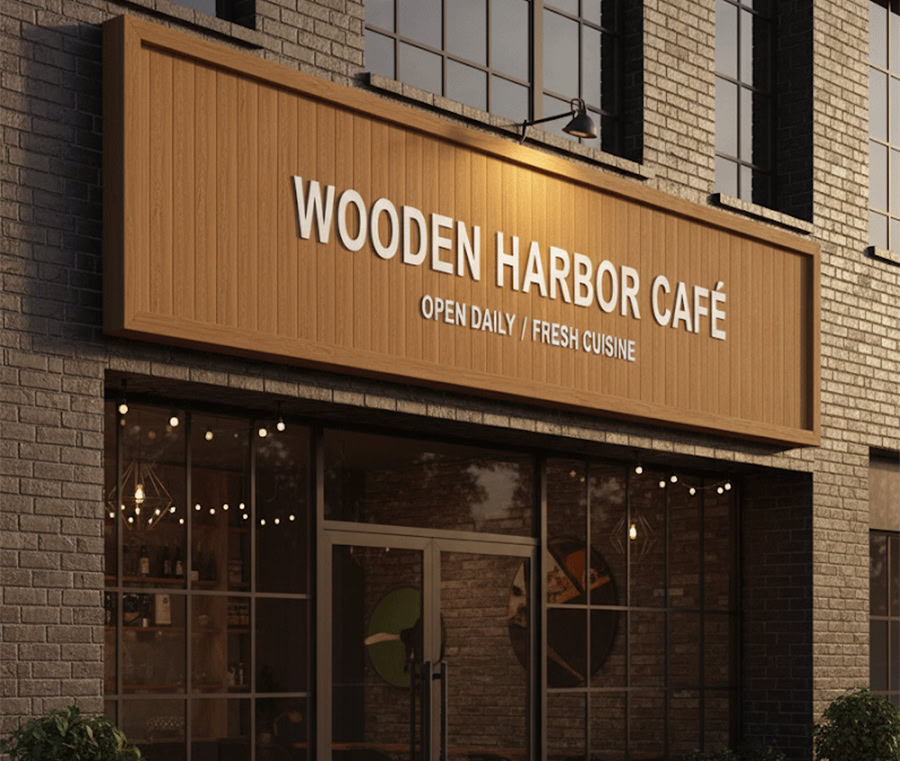

Make signs
Frequently asked questions about Galawood ASA coated plastic panels
How much does Galawood ASA-coated outdoor wood-plastic panels cost?
Depending on the specifications, the price ranges from 56.000–145.000 VND/meter. This is only 1/3–1/2 the price of group 2 natural wood but still has real 3D wood grain.
How much does it cost to install a complete package of ASA plastic panels for a 20m² facade?
About 12-15 million VND, including materials, labor and 5-7% loss.
Does the shipping price of ASA wood grain plastic panels change according to the delivery area?
Which interior style is suitable for Galawood outdoor plastic panels?
Suitable for Modern Tropical, Rustic, Scandinavian and Minimalism, thanks to the 3D wood grain surface that gives a natural feel like real wood.
How many colors of ASA coated outdoor wood plastic panels are there?
There are 5 standard colors: Golden Teak (dark orange-yellow), Coffee (coffee brown), Grey (gray), Deepwood (brown-yellow), Cherrywood (dark yellow).
Each color has its own "personality", suitable for each type of facade and exterior space:
1. Golden Teak (dark orange-yellow):
The deep orange-yellow tone gives a warm feeling, stands out in the sunlight, very suitable for facade cladding, balcony or main door frame. When combined with white or neutral painted walls, Golden Teak makes the house look brighter and more attractive from afar.
Coffee brown creates a calm, luxurious and modern look, suitable for gates, fences, walls, and garden areas. This tone does not show dirt, suitable for outdoor projects that are often exposed to rain, sun, and dust.
Gray is a safe choice for modern architecture: townhouses, villas, cafes, homestays... when used for facade or balcony cladding. Gray blends beautifully with glass, black iron, and raw concrete, creating a minimalist yet luxurious feel.
The brown-yellow tone evokes the feeling of natural wood, suitable for projects that want to keep a cozy but not too bright look. Suitable for porch cladding, window frames, decorative garden walls, in harmony with tiled roofs and surrounding trees.
The bold yellow color makes the facade and outdoor panels look bright, suitable for houses with a youthful style, resorts, and homestays that need eye-catching spaces for taking photos.
Can ASA plastic panels be used for coastal projects?
Yes. ASA coating is resistant to sea salt and UV rays, keeping color stable for 5-10 years.
Is there a limit to the height of the building when using ASA wood-plastic panels?
No. Can be used for 2-3 storey townhouses to 10-15 storey high-rise buildings. Reason: super light weight, reduces structural pressure, and steel frame ≥25×25 mm (≥1,2 mm thick) is capable of bearing the load for all scales.
Why should you choose ASA coated plastic panels instead of natural wood?
Choose ASA coated plastic panels because:
– The panel does not warp or get termites thanks to the tight PVC core.
– Price is only 1/3-1/2 the price of wood, saving budget but still getting real 3D wood grain.
Compared with indoor wood-like plastic panels, what are the advantages of ASA plastic panels?
ASA plastic panels are superior in weather resistance. Thanks to the ASA (Acrylonitrile–Styrene–Acrylate) coating, the panels can maintain stable color for 5-10 years outdoors, with only a 5-10% color loss in the first 5 years. Meanwhile, indoor plastic panels without ASA coating are prone to fading and becoming brittle when exposed to direct sunlight.
Comparison of ASA plastic sheet and ASA wood plastic sheet
ASA plastic panels have a different structure from ASA wood plastic panels. ASA plastic panels have a core layer made of 100% PVC plastic. ASA wood plastic panels have a core layer mixed with 60% PVC plastic and 20% wood powder.
What standards are required for ASA plastic panel frame?
How to clean the surface of ASA outdoor wood plastic panels?
Use water and a soft brush. For stubborn stains, use a pH 5–8 solution. Reason: ASA coatings can withstand mild detergents, but strong acids/alkali will damage the surface.
What is the fire resistance level of ASA Galawood imitation wood plastic sheet products?
Class B fireproof plastic sheet means the product is difficult to catch fire. If it catches fire, it will only burn locally and will not spread, safer than natural wood which is easily flammable.
Is Galawood ASA coated PVC sheet safe for health?
Yes. The product is formaldehyde-free and suitable for indoor living spaces.
What is the average lifespan of Galawood ASA plastic panels?
The average lifespan of ASA Galawood plastic panels is 5 - 10 years.
Does Galawood ASA plastic panel have warranty?
Products without warranty
Customer reviews of outdoor ASA-coated wood-like plastic panels
Phung Bao An
(Cafe owner in Ho Chi Minh City)
With just an outdoor wall clad in faux wood plastic, my cafe was transformed into a hot spot for taking Instagram-worthy photos. The cost wasn't high, but the results exceeded expectations: Customers took photos and posted them online, the cafe's image spread naturally, and revenue increased significantly.
Uncle Thanh Hung
Homestay owner, Da Lat
Retired, he just wanted a quiet, cozy corner of the garden to make tea and read books. He really liked the rustic look of wood, but thinking about taking care of it, painting it, and termites made him feel hesitant. His son researched and installed this ASA panel. At first, he was skeptical about 'plastic products'. Unexpectedly, it turned out so beautifully, it looked no different from natural wood, and the grain was pleasant to the touch. For the past few months, it has been raining and sunny all the time, but the porch is still brand new. Now, he is very relaxed, without any worries. It is truly a solution for us elderly people, who want a beautiful house but do not want to worry about anything.
Nguyen Hoang Minh
Agricultural Products Business, Hiep Phu Ward, Ho Chi Minh City
When building the house, I was hesitating between real wood and other materials for the facade. Wood is luxurious, but I was afraid of warping, termites, and having to spend money on painting after a few years, which was too much. By chance, an architect friend introduced me to ASA-coated plastic panels, so I decided to try it for the entire facade and balcony. The results exceeded my expectations! The construction was quick and clean. Most importantly, the wood grain looked just like real wood, and everyone who came to visit complimented how luxurious the house was. The recent heavy rains did not cause any damage. Now I have complete peace of mind and no longer have to worry about maintenance. It is truly a smart and valuable investment choice for my beloved home.
Architect Thu Lan
Director, LA Design Studio
As an architect, I'm always looking for materials that are both aesthetically pleasing and cost-effective for the client. For our recent beachfront resort project, we needed a lighter alternative to natural wood to reduce structural load, while still maintaining a luxurious feel for the resort space. ASA-coated PVC cladding panels perfectly met these requirements. The wood grain is sharp, the color is uniform, and the lightweight nature reduces structural load and shortens construction time. The quick and easy installation also allowed for clearer control over the overall project costs. The client was satisfied that the project achieved the necessary aesthetic appeal, but the investment cost was more balanced compared to using natural wood. For me, this is a highly practical material choice, suitable for resort projects that require a balance between design, budget, and implementation efficiency.
