Instructions for installing fluted stainless steel panels directly onto the wall.

Stainless steel fluted panels are a commonly used material for decorative wall cladding in living rooms, TV walls, showrooms, reception areas, cafes, or accent walls. For walls that are already flat, installers can directly glue the stainless steel fluted panels onto the wall without needing a frame.

Here are 7 steps for installing fluted stainless steel panels directly onto the wall.

Step 1: Prepare materials and tools for installing fluted stainless steel panels directly onto the wall.

7 tools for installing fluted stainless steel panels directly on walls.

1. The handheld cutting machine uses a stainless steel blade.
2. Protective gloves
3. Laser measuring machine
4. Tape measure
5. Angle ruler
6. Drill/screwdriver
7. Marker pen

6 materials for installing fluted stainless steel panels directly on the wall.

1. Stainless steel fluted panel
2. Stainless steel V brace
3. Paper masking tape
4. Construction adhesive
5. Tail screw

Step 2: Inspect and treat the wall surface covered with stainless steel fluted panels.

Before starting construction, the worker needs to check the flatness of the wall. The wall surface must be relatively flat and dry, with a surface difference of no more than 2mm per meter.

Step 3: Measure and cut the fluted stainless steel panel.

The worker measures the area to be clad, then cuts the fluted stainless steel panel to the actual dimensions of each location.

Step 4: Drill pilot holes into the ultrasonic waves at both the top and bottom ends of the stainless steel fluted panel.

We drill pilot holes in the acoustic panel, one hole on top and one hole on the bottom.

Step 5: Tear off the shrink wrap around the edges of the panel.

We need to tear off the shrink wrap around the edges for easier installation and removal afterward.

Step 6: Mark the drill holes on the wall.

We place the pre-drilled fluted panel in the desired installation position and mark the drill holes in the wall with a pen.

Step 7: Drill pilot holes in the wall at the locations where you will attach the stainless steel fluted panel screws.

Drill holes in the wall at the marked locations.

Step 8: Apply adhesive and stick the fluted stainless steel panel to the wall.

1. Apply construction adhesive evenly to the back of the panel and to the wall surface.
2. Attach the panel to the wall, aligning and pressing the surface evenly. The male groove should face inward, and the female groove should face outward.

Step 9: Secure the stainless steel panel to the wall using stainless steel screws.

At the pre-drilled holes, we screw the fluted stainless steel panel to the wall.

Step 10: Install the next stainless steel plate following the tongue-and-groove joint.

Install the next stainless steel panel, aligning the male groove with the female groove. Complete all steps: pre-drill the pilot hole in the panel, mark the hole on the wall, pre-drill the hole in the wall, apply sealant, and secure the panel with stainless steel screws.

Step 11: Remove the protective film from the surface of the stainless steel panel.

Once the panel is securely fixed, the technician proceeds to remove the protective film from the stainless steel surface.

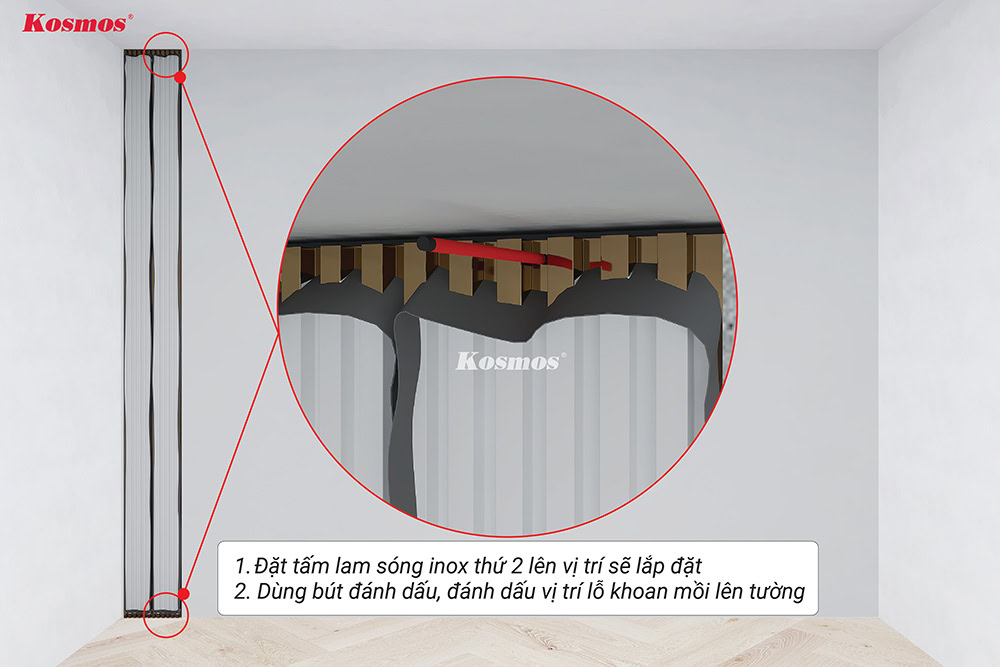

Mark the second plate drilling hole.

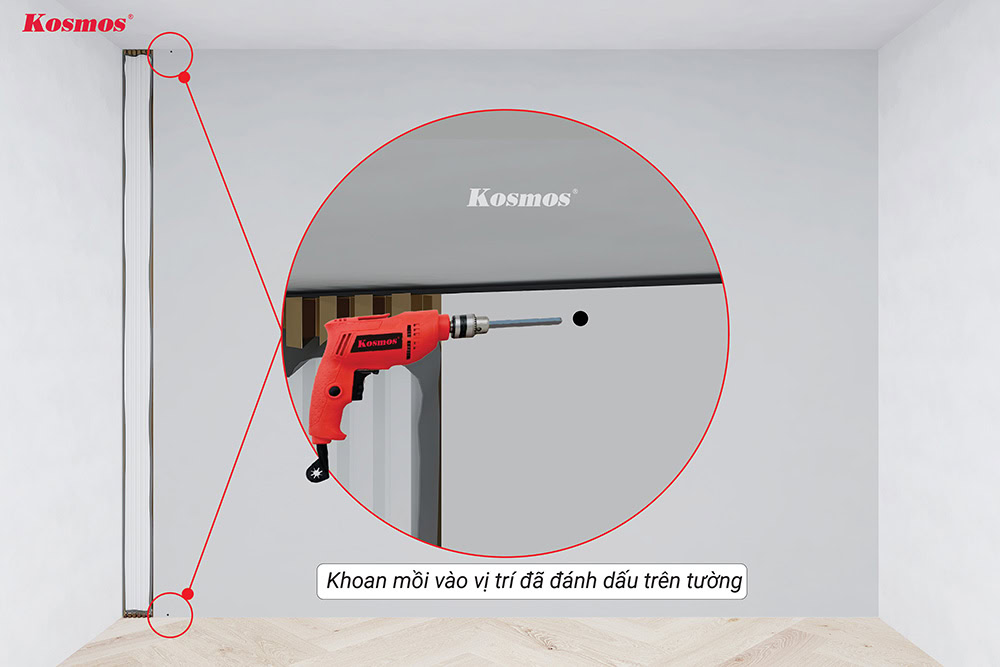

Drill pilot holes in the wall to install the second panel.

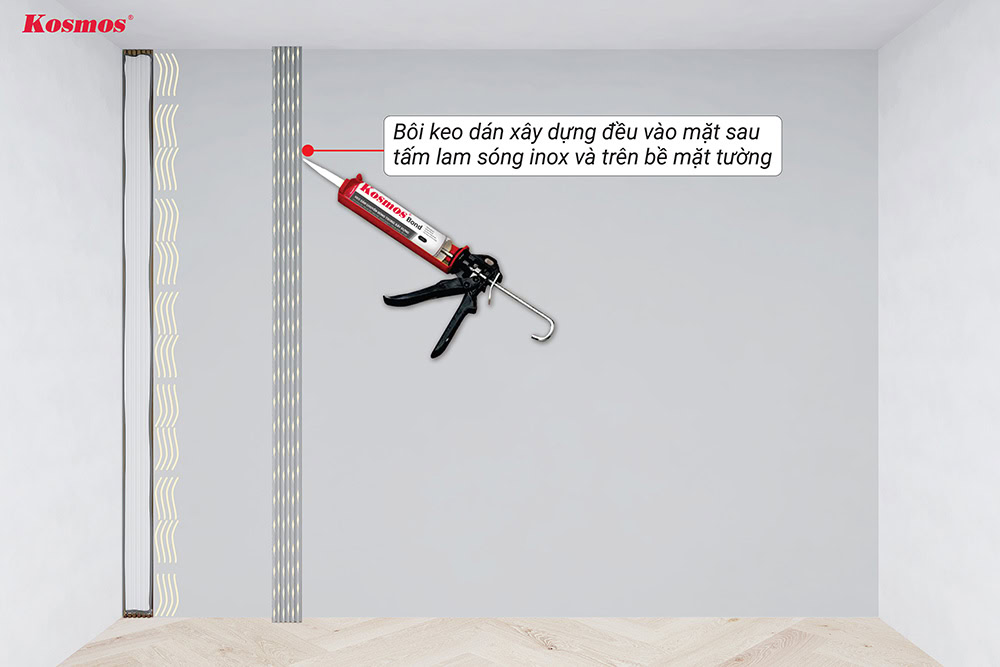

Apply glue to the back of the second sheet.

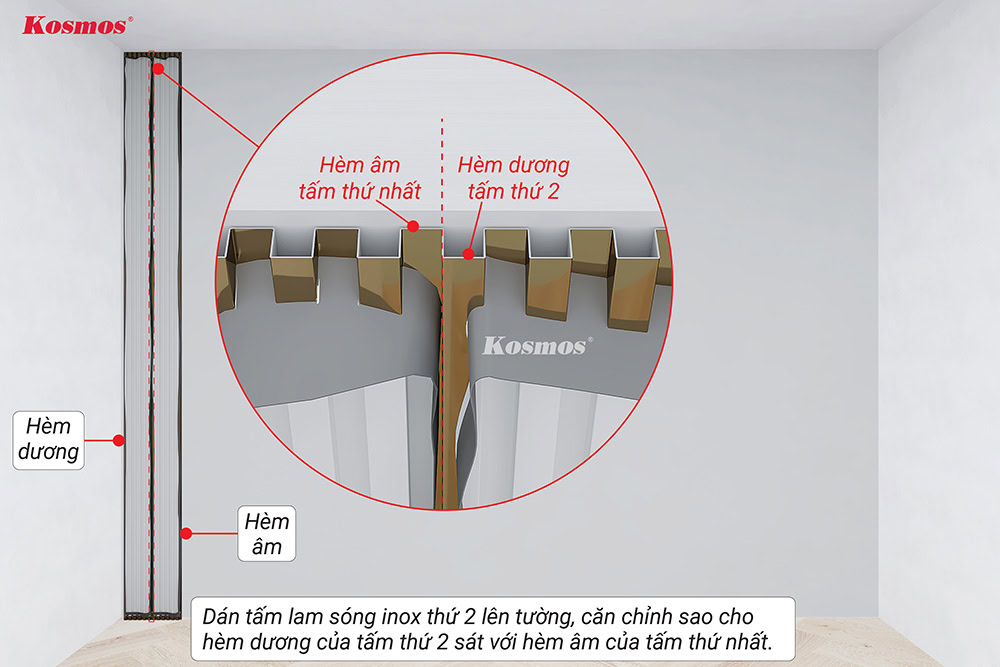

Attach the second fluted panel next to the first one.

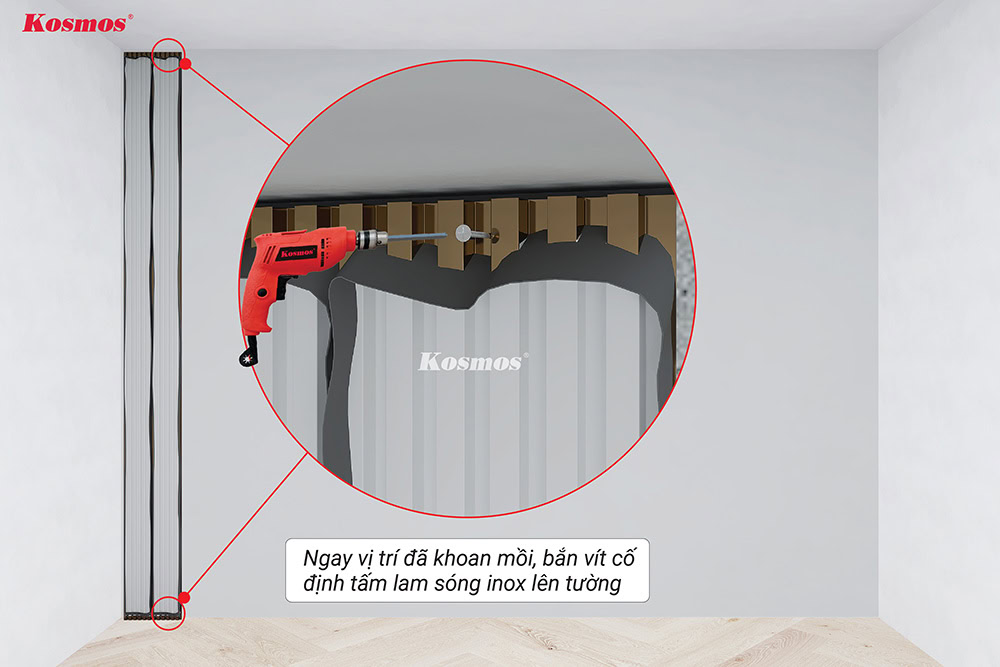

Secure the second panel with screws.

Step 12: Install the V-shaped edge trim to cover the fluted stainless steel panel on the wall.

At the edges or corners of the panels, installers can use V-shaped stainless steel trim to cover the edges. These trims are usually glued with construction adhesive, which helps conceal the edges while giving the wall a neater and more finished look.

The method of directly attaching fluted stainless steel panels to the wall is a quick and cost-effective installation method, but it is only suitable for walls that are flat, dry, and sturdy. You can refer to the instructions for installing fluted panels on a frame if the wall does not meet these requirements. Kosmos is ready to provide further advice via phone. 0932.067.388
